inline
carbonation
Beer with always the perfect level of CO2 thanks to Haffmans in-line carbonation system CCR
Why do in batch what can be
done continously
Inline
Carbonator

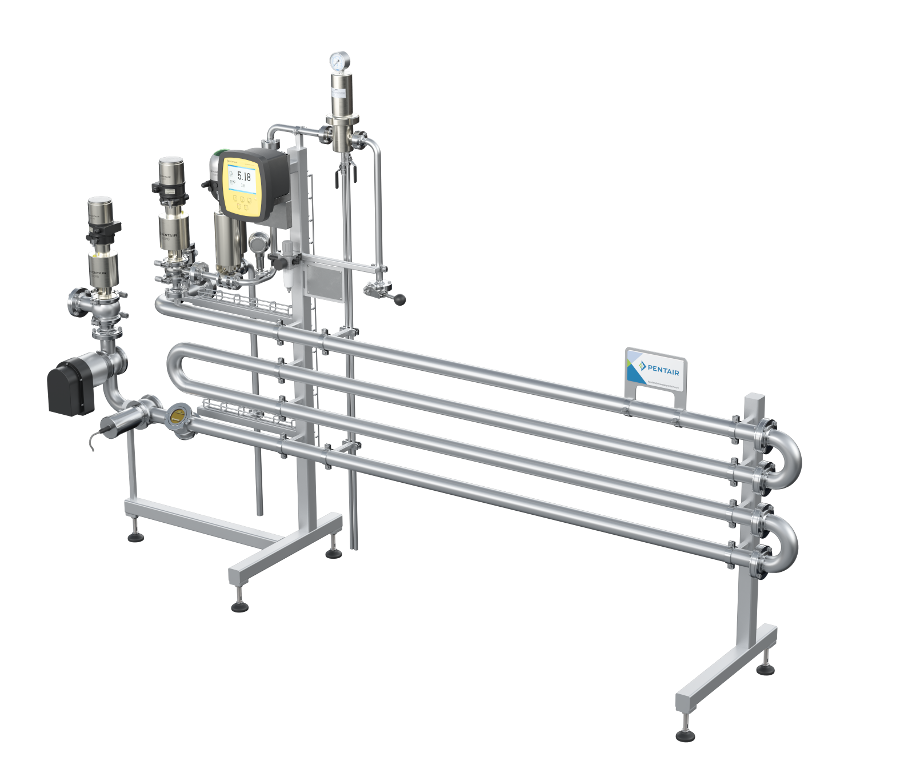

Beer with always the perfect level of CO2 thanks to Haffmans CCR
Why do in batch what can be done online?
Discover the secret of consistently perfect brews with the Haffmans CCR distributed by Zytho, designed specifically for breweries seeking precision, efficiency and unrivalled quality: in-line carbonation.
Why you want online carbonation
Carbonation can take several hours in the tank, and is often one of the last steps before filling into containers.
Why not use the transfer time between the fermenter and the storage tank to carry out carbonation, but this time in-line?
Your products won’t stay in the holding tank as long, and you’ll get a better turnover rate.
Why this product is a winner
- Increased efficiency: automate your carbonation process with ease. Software-integrated dosing control streamlines operations, saving you time. Static mixers also improve the integration of CO2 into the liquid to use as little gas as possible.
- Analysis and control: This system controls the injection of CO2 and analyzes its level at the outlet using the Aucomet in-line probe. If required, the system will increase or reduce the injection according to the desired CO2 values. Add the O2 OGM probe for on-line DO results.
- User-friendly interface: Intuitive controls and a clear display make operation easy for your team, even on the busiest production days. With the Connect+ module, your PLC can control your carbonator.
Specifications
- Measuring range CO2 2.0 to 9.9 g/l
- 2 ” TC connections, other connections available on request
- Contact materials: AISI 316
- OPTIONAL: O2 analysis probe from 0.0 to 2,000 ppb
- Dosing accuracy 0.05 g/l
- Non-contact materials 314/ABS
