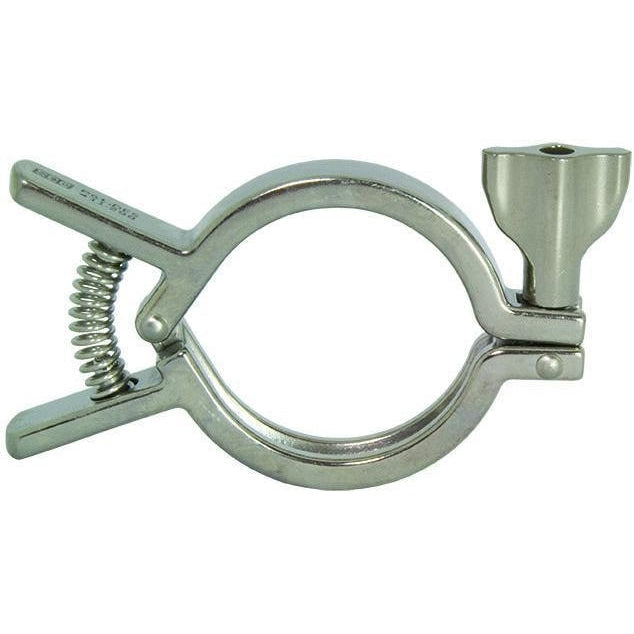

13MHHM Single Pin Squeeze Tri-Clamp – Dixon

Main Features

Engineered for precision and reliability, our tri-clamps offer significant advantages for professionals in regulated industries. The single-pin clamp design, featuring a squeeze mechanism, facilitates one-handed installation, enhancing operational efficiency. Constructed from high-grade stainless steel, these clamps are ideal for use in critical sectors such as food processing, beverage production, biotechnology, and pharmaceuticals. Compliance with ASME A270 and 3A standards ensures adherence to industry regulations.

Benefits:

• Single-handed installation enabled by the squeeze clamp mechanism.
• Manufactured from durable stainless steel for longevity and corrosion resistance.
• Certified to meet ASME A270 and 3A standards, ensuring regulatory compliance.

Product Details:

• Wingnut designed to be tightened to a torque of 25 in. lb.

Safety Notes:

• Pressure ratings are contingent upon the proper alignment and assembly of elastomer gaskets and weld ferrules, with clamps tightened to specified torques. Hydrostatic testing is conducted without water hammer or shock loads.
• Be aware that the pressure ratings of these unions may exceed recommended pipeline operating pressures.

Catalogue Page:

• DPL418 – 564

Dimensional Specifications:

• Dimensional Specs
