13MHHM Three Segment Tri-Clamp – Dixon

Main Features

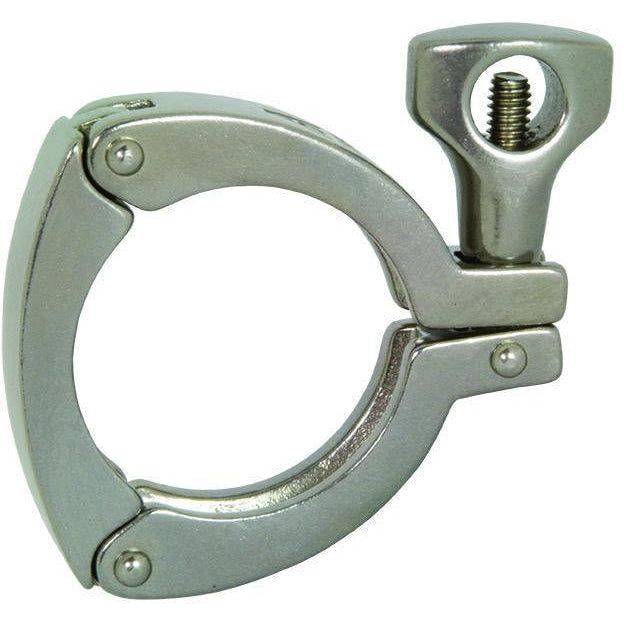

Tri-clamps are a prevalent choice for sanitary connections across North America, particularly valued in the food, beverage, biotech, and pharmaceutical sectors. These connections feature a gasket positioned between two tri-clamp ferrules or flanges, secured by a clamp for a reliable seal. Constructed from stainless steel, the design is inspired by the original tri-clamp, incorporating three segments to facilitate installation in confined spaces. These components meet the stringent standards of ASME A270 and 3A certifications.

Benefits:

• Designed for easy installation in tight spaces with a three-segment configuration.
• Complies with ASME A270 and 3A certifications, ensuring high standards of quality and safety.
• Constructed from durable stainless steel, suitable for use in regulated industries.

Product Details:

• Wingnut should be tightened to 25 in. lb. of torque for optimal performance.
• Service pressure ratings are contingent upon the use of matching elastomer gaskets and weld ferrules, properly aligned and assembled with the clamps tightened to specified torques. Testing is conducted hydrostatically, without water hammer or shock loads.
• Be aware that the pressure ratings of these unions may exceed the recommended operating pressures for pipelines.

Catalog Page:

• DPL418 – 565

Dimensional Specifications:

• Dimensional Specs
