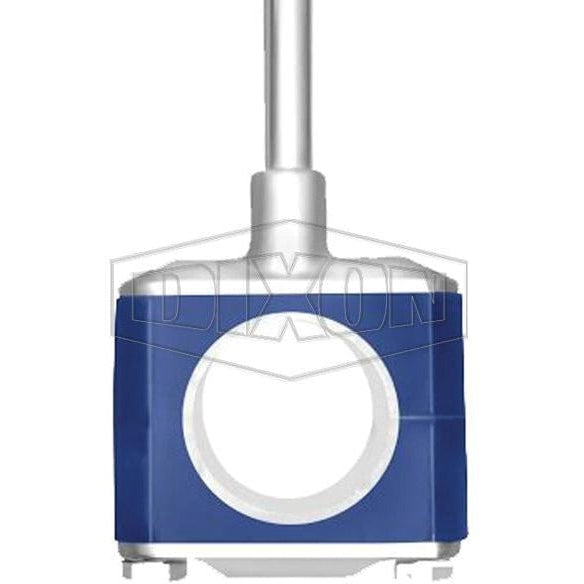

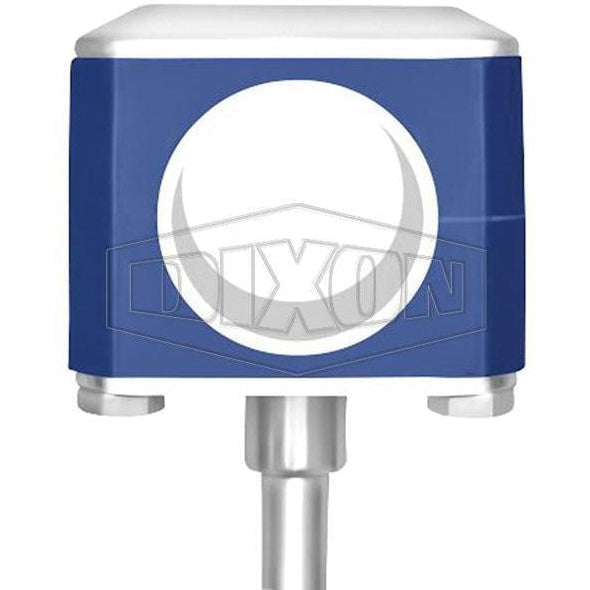

B24 Tube Uni-Hinge Block Hanger – Dixon

Main Features

Benefits:

• The hanger’s design allows it to be seamlessly integrated within the insulation jacket due to its minimized outer diameter.
• Hardware components are designed without visible threads or openings, ensuring a clean and secure installation.
• All hardware plates are polished, with bolts meticulously cleaned and nuts lubricated using FDA-compliant products.
• Thread specifications are aligned with MSS 69 rod outer diameter standards.

Applications:

• Suitable for clean rooms and mechanical spaces, including but not limited to biotechnology, pharmaceutical, and food processing environments.
• Ideal for systems with low flow and low pressure that experience moderate vibration, such as WFI, SIP, CIP, process, utility, and instrumentation lines.

Product Details:

• Constructed with a single-piece silicone insert rated at 80 durometer hardness.
• Utilizes 304 and 316 stainless steel for all hardware components.
