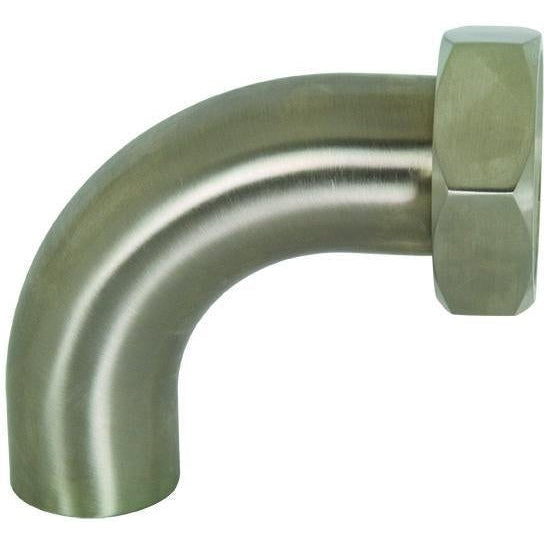

B2FP Polished 90° Plain Bevel Seat with Hex Nut x Weld Elbows – Dixon

The Dixon B2FP Polished 90° Plain Bevel Seat with Hex Nut x Weld Elbow is a precision-engineered sanitary fitting designed to provide a secure, hygienic 90° directional change in process piping systems. Combining a plain bevel seat connection with a welded end, this elbow offers both versatility and durability — ideal for food, beverage, dairy, and pharmaceutical applications requiring easy maintenance and clean, crevice-free performance.

Key Benefits

• Reliable Bevel Seat Connection: Features a plain bevel seat with hex nut for a tight, reusable, and serviceable joint that allows quick disassembly for cleaning or inspection.
• Permanent Welded End: Ensures a strong, leak-free connection where a fixed joint is required.
• Polished Sanitary Finish: Interior and exterior surfaces are polished to a 32 Ra or better finish, minimizing product buildup and ensuring full CIP/SIP compatibility.
• Durable Construction: Fabricated from 304 or 316L stainless steel for superior corrosion resistance and long service life.
• Smooth Flow Design: True 90° bend maintains consistent flow and reduces turbulence, protecting product integrity.

Typical Applications

• Food and dairy processing systems
• Beverage and brewery pipelines
• Pharmaceutical and cosmetic production
• Biotech and sanitary process installations

Product Details

• Material: 304 or 316L Stainless Steel
• Connection Type: Plain Bevel Seat with Hex Nut x Weld
• Angle: 90°
• Surface Finish: Polished ID/OD (≤32 Ra)
• Size Range: 1″ – 4″
• Standards: 3-A Sanitary, ASME BPE, and FDA compliant

Engineered for hygienic performance and lasting reliability — the Dixon B2FP 90° Plain Bevel Seat with Hex Nut x Weld Elbow ensures smooth flow, easy maintenance, and secure sealing in any sanitary process system.
