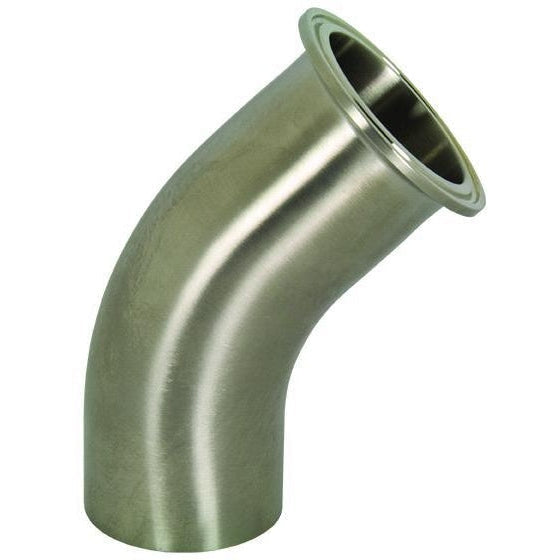

B2KM Polished 45° Tri-Clamp x Weld Elbows – Dixon

Main Features

The Dixon B2KM Polished 45° Tri-Clamp x Weld Elbow provides a smooth, sanitary transition between Tri-Clamp and weld connections in process piping systems. Its 45° angle design allows directional changes while maintaining full flow and minimal turbulence, making it ideal for hygienic applications where cleanliness and flow efficiency are critical.

Key Benefits

• Hygienic Design: Polished to a mirror-like sanitary finish, minimizing product buildup and supporting efficient CIP/SIP cleaning.
• Seamless Integration: Combines a Tri-Clamp connection on one end and a weld connection on the other for easy installation and flexibility.
• Optimized Flow Path: 45° bend provides smooth directional flow with minimal pressure drop.
• High-Quality Materials: Fabricated from 304 or 316L stainless steel for superior corrosion resistance and durability.
• Precision Fit: Manufactured to 3-A and ASME BPE sanitary standards for compatibility with existing process systems.

Typical Applications

• Food and beverage production
• Brewery and distillery piping
• Dairy and cosmetic processing
• Pharmaceutical and biotech facilities

Product Details

• Material: 304 or 316L Stainless Steel
• Connection Ends: Tri-Clamp x Weld
• Angle: 45°
• Surface Finish: Polished ID/OD (32 Ra or better)
• Size Range: 1″ – 4″
• Standards: 3-A Sanitary, ASME BPE, and FDA compliant

Engineered for strength, precision, and hygiene — the Dixon B2KM 45° Tri-Clamp x Weld Elbow ensures smooth flow and easy integration in any sanitary piping system.
