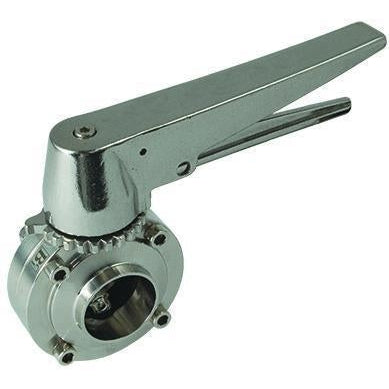

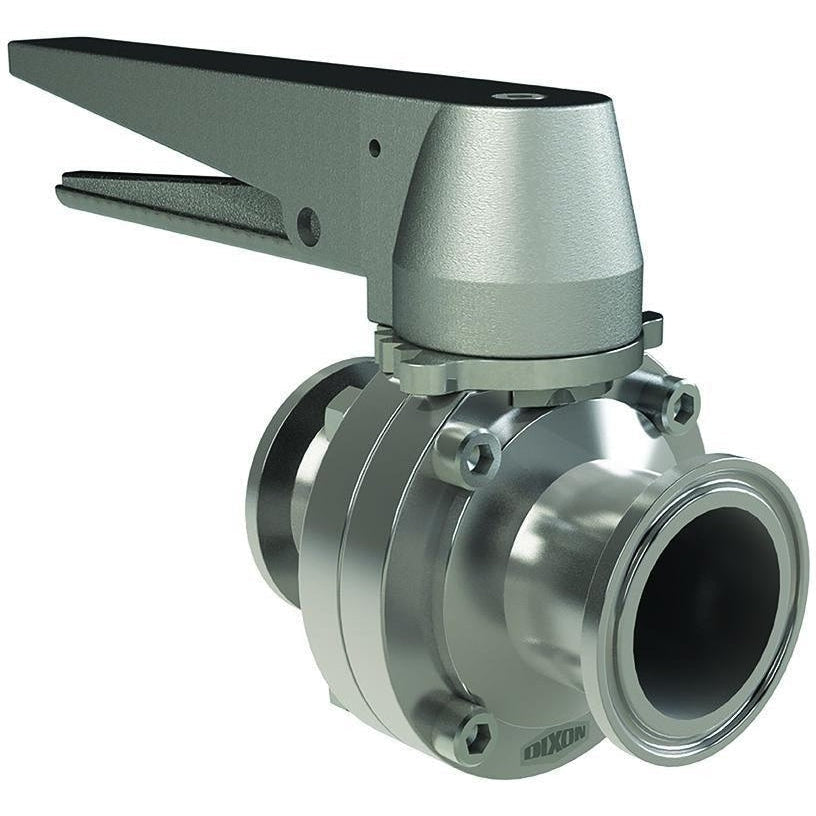

B5107 Series Butterfly Valve with Trigger Handle – Dixon

Main Features

Butterfly valves are widely utilized as a primary sanitary valve type across North America. These valves feature a wafer positioned within a circular seat, with a handle or actuator facilitating precise flow control. Constructed from stainless steel, they are ideal for piping applications in the food, beverage, biotech, and pharmaceutical sectors. Equipped with a trigger handle, these butterfly valves offer enhanced flow control options compared to the traditional pull handle. They meet the rigorous standards of ASME A270 and 3A certifications.

Benefits:

• Bi-directional flow capability
• Low resistance to flow
• Self-draining design
• Field-serviceable
• Gentle handling of media
• Suitable for low and medium viscosity fluids

Product Details:

• Flow coefficient: 7 CV
• Break torque: 20 in. lbs.

Construction:

• All wetted surfaces are finished to a sanitary level of < 32Rₐ

Note:

• The provided Pressure Rating (PSI), Flow Coefficient (CV), and Break Torque (in. lbs.) are based on water media at 68 °F / 20 °C
• The handle is shipped unassembled. To receive the valve with the handle pre-assembled, please specify this in the special instructions of your order.

Dimensional Specifications:

• Dimensional Specs
