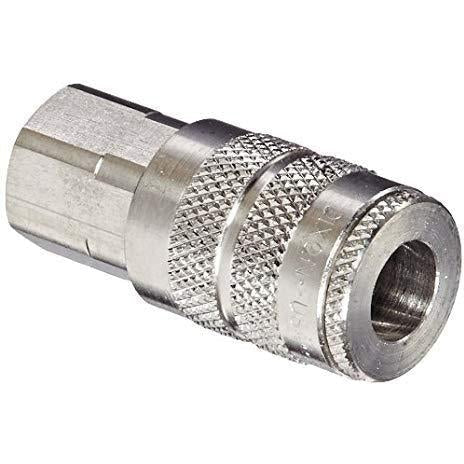

Main Features
Designed for rapid connectivity, a complete coupling system includes both a plug and a socket, facilitating quick and easy access to lines. These are essential for applications requiring frequent connection and disconnection, commonly referred to as industrial interchange couplings. Industrial plugs are universally compatible with any Industrial socket of the same coupling size, irrespective of pipe dimensions or barbed hose internal diameter.
Benefits
- Ensures seamless compatibility across various industrial applications.
- Facilitates quick and efficient line access, enhancing operational efficiency.
- Maximizes corrosion resistance and extends the service life of components.
Product Details
- Maximum Working Pressure: 500 PSI (35 bar); Burst Pressure: 26,000 PSI (1,795 bar) for 303 Stainless Steel Coupler & Plug.
Construction
- Components are precision-machined from solid bar stock for enhanced durability.
- Incorporates stainless steel balls, retaining rings, and springs for superior corrosion resistance.
- Standard seals are made of Nitrile (Buna-N) for reliable performance.
- Features ROHS Compliant Trivalent Chrome plating on steel components.
- Includes a robust steel tubular valve.
Compatibility & Interchange Data
- Compatible with Foster 3, 4, 5, and 6 Series.
- Interchangeable with Parker 30-Series Automatic Interchange.
- Works with Hansen 3000, 4000, 5000, and 6000 series.
How It Works
- To initiate disconnection, grip the hose on the nipple side using three fingers, leaving your thumb and index finger free.
- Secure the sleeve with your thumb and index finger, then pull it towards your palm.
- As the sleeve is pulled, the nipple will slightly disengage from the coupler. Maintain your grip until all air is expelled.
- Once the line is completely exhausted, safely detach the nipple from the coupler.
