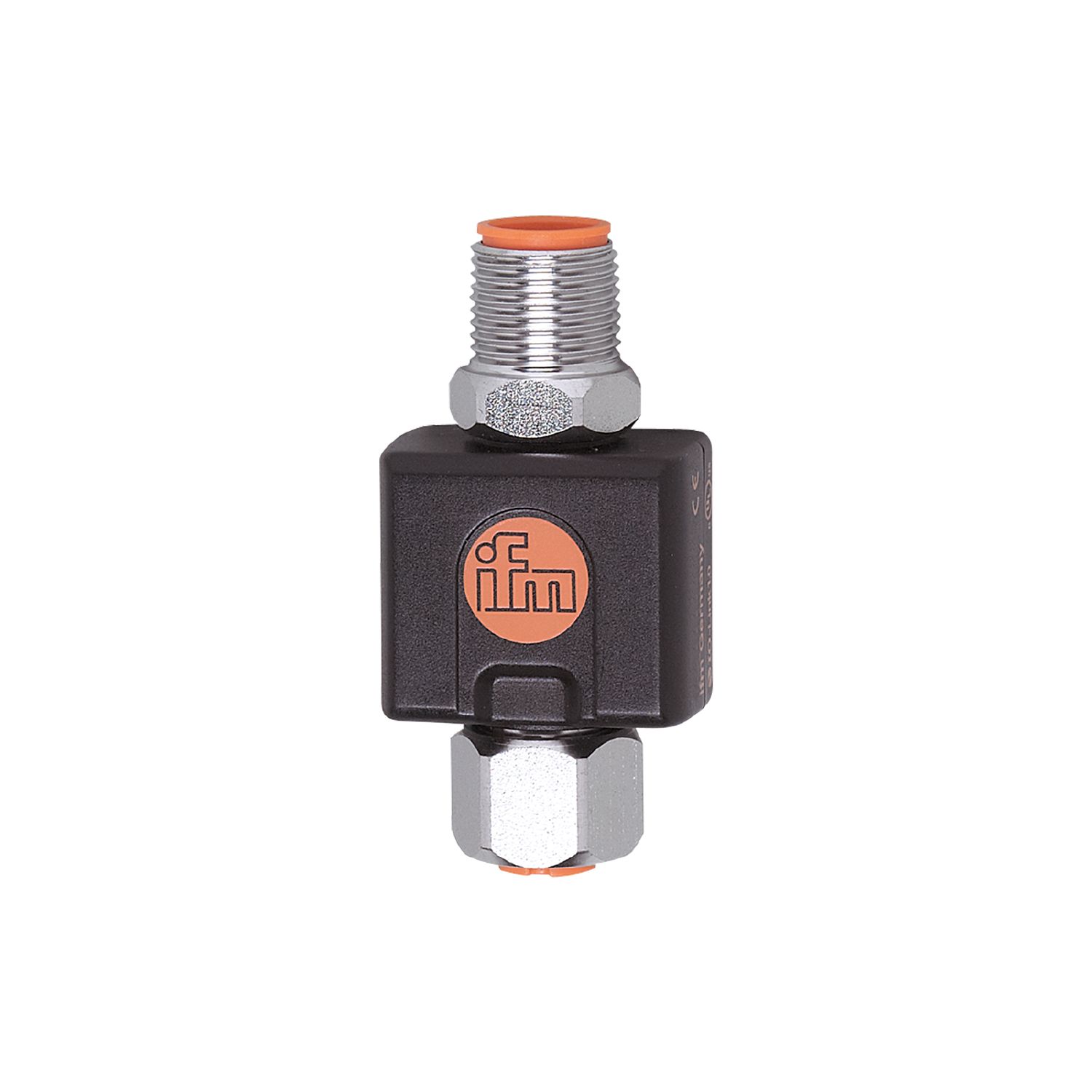

IFM TP9237 – Electronic housing for PT100 sensors/PT1000 for precise temperature signal conditioning

Engineered for industrial automation, the IFM TP9237 conditions and evaluates signals from PT100/PT1000 resistance temperature sensors, delivering clean, stable outputs to control systems. Its rugged, fully potted electronics and robust connection technology withstand high vibration on machinery, valve systems, and process equipment. Compared to head-mounted transmitters, the TP9237 simplifies mounting and wiring in control cabinets or near the sensor, reducing error sources and commissioning time. Automatic recognition of the connected RTD streamlines setup and ensures accurate measurement across diverse applications.

Key Benefits

• Fast commissioning with automatic PT100/PT1000 detection
• Reduced mounting complexity versus head transmitters; fewer wiring errors
• High vibration resistance thanks to fully potted design and durable connectors
• Stable, accurate signal conditioning for PLCs, DAQ, and control loops
• Compact enclosure enables flexible placement in machines and process lines

Product Details

• Compatible sensors: PT100 and PT1000 resistance thermometers (RTDs)
• Function: Signal evaluation/conditioning for industrial temperature measurement
• Mechanical: Fully encapsulated electronics; robust connection technology for harsh environments
• Use cases: Process monitoring, HVAC, thermal control of actuator/valve systems, machinery protection
• Installation: Streamlined mounting to minimize cabling and error sources

Count on the TP9237 for reliable temperature measurement and seamless integration into PLC-based automation and control systems.
