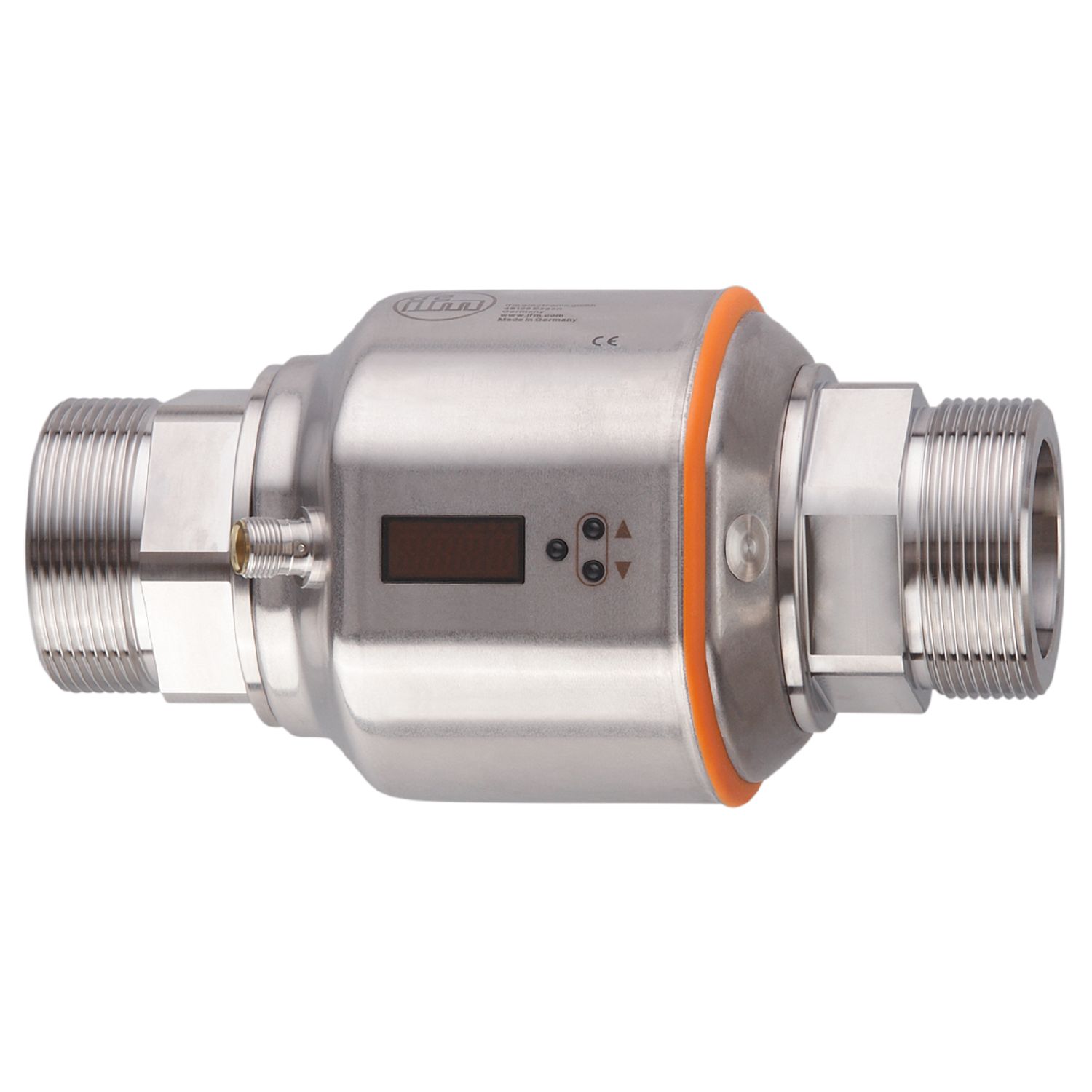

IFM SM9100 Magnetic‑Inductive Flow Meter – precise flow and temperature monitoring sensor

Engineered for conductive liquids in closed pipework, the IFM SM9100 magnetic‑inductive flow meter delivers precise measurement of flow, consumption, and medium temperature for process control, cooling circuits, dosing lines, and valve system monitoring. Using the MID principle, it combines high accuracy, excellent repeatability, and fast dynamics with robust empty‑pipe detection for reliable operation in automated plants.

Key Benefits:

• Accurate, repeatable flow and consumption measurement for tight control loops
• Integrated medium temperature sensing reduces extra sensors and ports
• Empty‑pipe detection enhances process safety and diagnostic coverage
• Flexible outputs: switching, analogue, and pulse for PLC/SCADA integration
• Bright 4‑digit LED ensures clear local indication during setup and maintenance

Technical Overview:

• Measurement principle: magnetic‑inductive (for conductive media)
• Measured variables: flow rate, totalized consumption, medium temperature
• Outputs: 1x switching output, 1x analogue output, 1x pulse output
• Display: clearly visible 4‑digit LED
• Functions: precise empty‑pipe detection; high accuracy, repeatability, and dynamic response
• Installation: inline sensor for standard mounting in existing piping and valve systems
• Interfaces: suitable for integration with PLCs, controllers, and actuators via standard I/O

Count on the SM9100 for dependable measurement and seamless integration into your automation architecture, from sensors to actuators.
