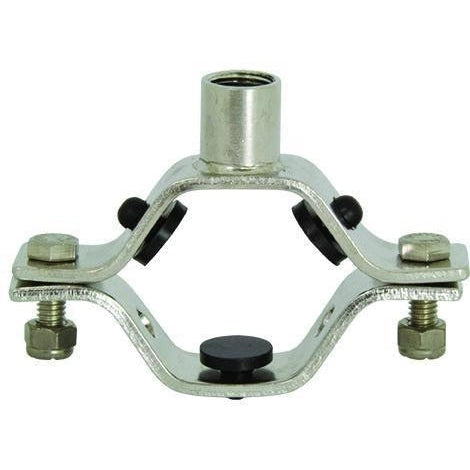

Stainless Steel Hex Hanger with Grommets and All Thread Coupler – Dixon

Main Features

Hex style hangers offer exceptional versatility for supporting pipe and tubing systems. These hangers can be installed using various methods, allowing for suspension from pipes or direct mounting to surfaces, based on specific requirements. The construction materials can be customized to handle fluids at extreme temperatures, whether hot or cold. Complete with grommets, these hangers are ideal for both new and existing sanitary tubing installations and include an all-thread coupler for use with threaded rods.

Benefits

• Versatile installation options for diverse applications
• Customizable materials to accommodate extreme temperature fluids
• Comprehensive solution with grommets and coupler for seamless integration

Construction

• The coupler is all thread 3/8″-16

Installation

• Support is required at each change of direction
• Each side of every valve requires support, positioned as close to the connection as possible
• Straight sections necessitate support every 10 ft.

Product Details

• Nitrile Grommets Maximum Temperature: 230 °F / 110 °C
• FKM Grommets Maximum Temperature: 392 °F / 200 °C

Safety Notes

• Proper Installation:
  • Support each change of direction
  • Each side of every valve requires support, positioned as close to the connection as possible
  • Straight sections necessitate support every 10 ft.

Catalog Page

• DPL418 – 624
