T2CM High Purity BioPharm 90° Clamp x Weld Elbows – Dixon

Main Features

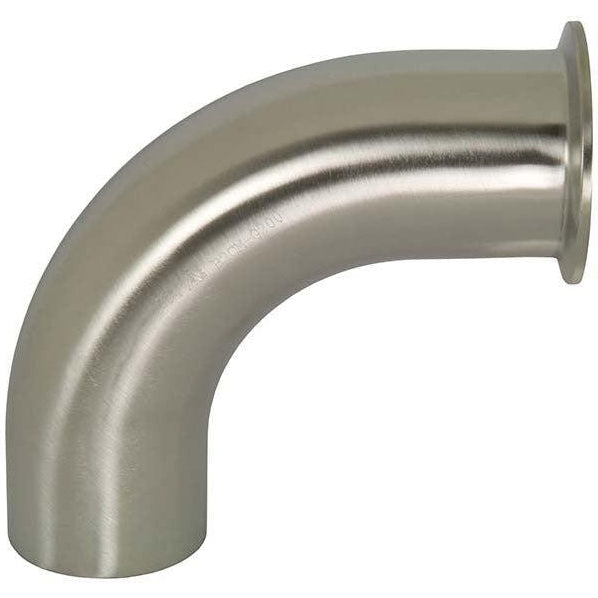

T2CM High Purity BioPharm 90° Clamp x Weld Elbows for Sanitary Applications

Benefits:

• Constructed from 316L stainless steel with controlled sulfur content, ensuring optimal corrosion resistance and weldability.
• Engineered for high-purity applications across pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing, and beverage sectors.
• Conforms to ASME BPE International Standard and 3-A Sanitary Standards for bioprocessing equipment, guaranteeing compliance with industry regulations.
• Offered in PL Finish SF1 (OD=32 Ra, ID=20 Ra) or PM Finish SF4 (OD=32 Ra, ID=15 Ra) to accommodate diverse surface finish specifications.
• Product markings adhere to ASME BPE 2012 DT-10.1, including job number, 316L, part number, heat number(s), surface finish code, and ASME BPE compliance.

The T2CM High Purity BioPharm 90° Clamp x Weld Elbows are meticulously crafted for high-purity processing systems integral to industries such as pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing, and beverage. These elbows facilitate seamless directional transitions in piping systems while preserving the integrity and purity essential for critical applications.

Fabricated from 316L stainless steel, these fittings are compliant with all orbital welding specifications and feature controlled sulfur content, ensuring compatibility with high-purity systems. Available in PL Finish SF1 (OD=32 Ra, ID=20 Ra) or PM Finish SF4 (OD=32 Ra, ID=15 Ra), they offer solutions to meet various surface finish requirements.

All fittings are in accordance with the latest ASME BPE International Standard for Bioprocessing Equipment and comply with the 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621), ensuring they meet the highest standards for sanitary applications.

Product Details:

• Catalog Page: DPL418 – 625
• Certifications: 3A Certificate
• Dimensions: Dimensional Specifications

Note:

• MTR (Material Test Report) certifications are included within the resealable bag accompanying each fitting, traceable via the Job Number on each fitting.
• All fittings are capped to prevent damage and contamination; PL finish fittings have blue caps, and PM finish fittings have white caps for easy identification.
• Product markings may vary depending on fitting size due to space limitations.

The T2CM High Purity BioPharm 90° Clamp x Weld Elbows deliver dependable, high-quality solutions for sanitary piping systems, ensuring adherence to stringent industry standards and maintaining the purity required in critical processing environments.
