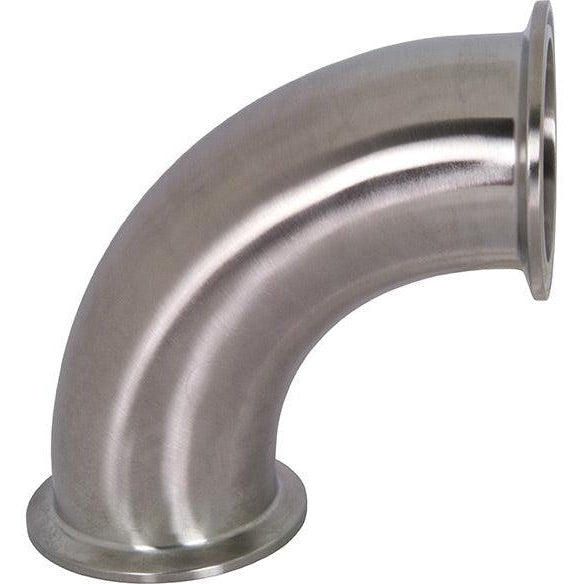

T2CMP High Purity BioPharm – 90° Clamp x Clamp Elbows – Dixon

Main Features

Benefits:

• Ideal for use in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing, and beverage industries due to their high purity standards.

Product Details:

• Crafted from 316L stainless steel, these fittings adhere to all orbital welding specifications with controlled sulfur content.
• Conforms to the latest ASME BPE International Standard for Bioprocessing Equipment.
• Compliant with 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
• Available in PL Finish ƒ?? SF1 (OD=32R a- ID=20R a) or PM Finish ƒ?? SF4 (OD=32R a- ID=15R a)

Note:

• Markings are in accordance with ASME BPE 2012 DT-10.1, including job number, 316L, part number, heat number(s), surface finish code, and ASME BPE.
• Size constraints may limit the space for markings; not all markings may be included in such cases.
• The part number provides details on the part configuration and size.
• Each fitting comes with MTR (Material Test Report) certifications, traceable via the Job Number. Fittings are capped to prevent damage and contamination, with blue caps for PL finish and white caps for PM finish.

Catalog Page:

• DPL418 – 625

Certifications:

• 3A Certificate

Dimensional Specifications:

• Dimensional Specs
