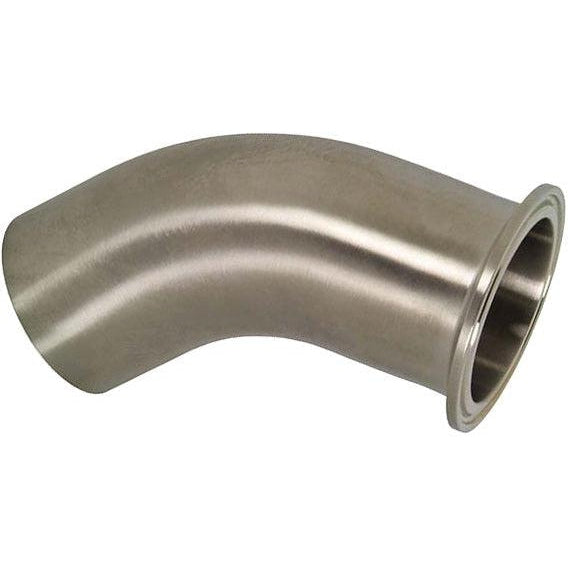

T2KM High Purity BioPharm – 45° Clamp x Weld Elbows – Dixon

Main Features

Benefits:

• High Purity BioPharm fittings are integral to operations in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing, and beverage industries.

Product Details:

• Crafted from 316L stainless steel, these fittings adhere to all orbital welding specifications, featuring controlled sulfur content.
• Conforms to the latest ASME BPE International Standard for Bioprocessing Equipment.
• Certified under 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
• Available in PL Finish SF1 (OD=32R a- ID=20R a) or PM Finish SF4 (OD=32R a- ID=15R a).

Note:

• Markings are compliant with ASME BPE 2012 DT-10.1 standards.
• Markings include job number, 316L, part number, heat number(s), surface finish code, and ASME BPE designation.
• Size constraints may limit marking space, potentially excluding some details.
• The part number provides details on configuration and size.
• Each fitting is accompanied by MTR (Material Test Report) certifications, enclosed within a resealable bag. These MTRs are traceable via the Job Number on each fitting. All fittings are capped to prevent damage and contamination, with color-coded caps for easy identification: blue for PL finish and white for PM finish.

Catalogue Page:

• DPL418 – 626

Certifications:

• 3A Certificate

Dimensional Specifications:

• Dimensional Specs
