T2KMP High Purity BioPharm – 45° Clamp x Clamp Elbows – Dixon

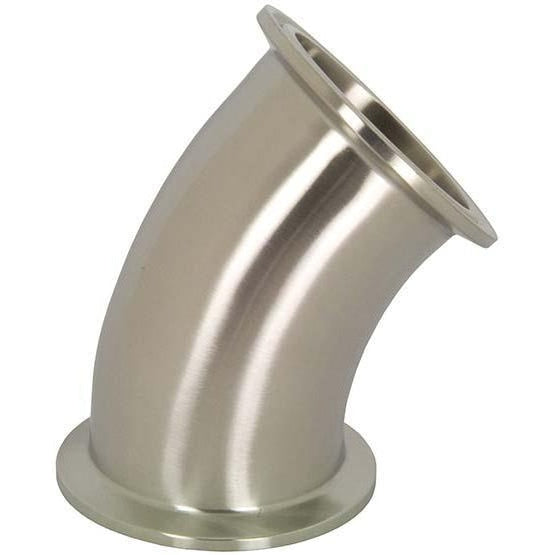

The Dixon T2KMP High Purity BioPharm 45° Clamp x Clamp Elbow is engineered for critical hygienic and biopharmaceutical applications where purity, cleanability, and flow integrity are paramount. Designed with 45° geometry and Tri-Clamp connections on both ends, this precision fitting ensures smooth directional flow with minimal turbulence, supporting the stringent demands of sterile processing systems.

Key Benefits

• High Purity Design: Electropolished to an ultra-smooth surface finish, minimizing product hold-up and microbial growth potential.

• Consistent Cleanability: Fully compatible with CIP (Clean-in-Place) and SIP (Steam-in-Place) processes for reliable sterilization.

• Precision Flow Path: 45° bend maintains optimal flow while reducing pressure drop and mechanical stress in tight system layouts.

• Superior Material Integrity: Constructed from 316L stainless steel with controlled sulfur content to meet biopharmaceutical standards.

• Fully Traceable: Each fitting is laser-marked for heat and lot traceability, ensuring full process validation and compliance.

Typical Applications

• Biopharmaceutical manufacturing

• Cleanroom and sterile systems

• WFI (Water for Injection) and buffer lines

• High-purity food and beverage processes

• Laboratory and medical device production

Product Details

• Material: 316L Stainless Steel

• Connection Type: Tri-Clamp x Tri-Clamp

• Angle: 45°

• Surface Finish: ≤15 Ra (electropolished)

• Size Range: 1/2″ – 6″

• Standards: ASME BPE, 3-A Sanitary, FDA compliant

• Documentation: Material Test Reports (MTRs) and surface finish certifications available

Engineered for precision, purity, and performance — the Dixon T2KMP 45° High Purity BioPharm Elbow delivers uncompromising sanitary quality for the most demanding process environments.
