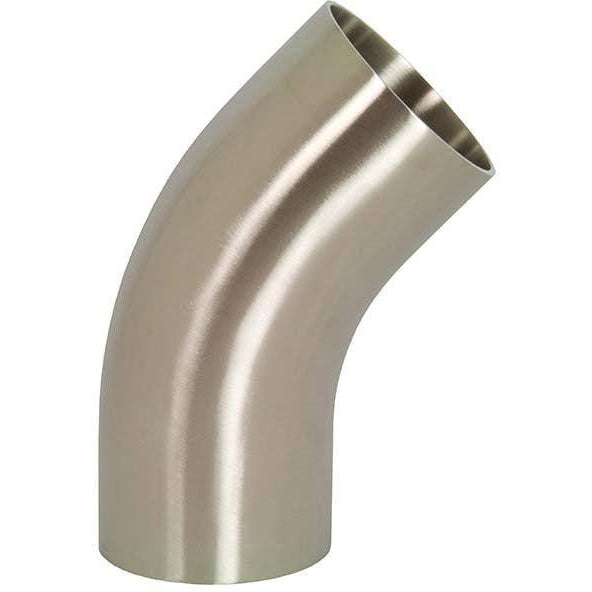

T2KS High Purity BioPharm – 45° Weld Elbows – Dixon

Main Features

Benefits:

• High Purity BioPharm fittings are essential for maintaining stringent sanitary conditions in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing, and beverage industries.

Product Details:

• Crafted from 316L stainless steel, these fittings comply with all orbital welding specifications and feature controlled sulfur content.
• Manufactured in accordance with the latest ASME BPE International Standard for Bioprocessing Equipment.
• Adheres to 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
• Available in PL Finish SF1 (OD=32R a- ID=20R a) or PM Finish SF4 (OD=32R a- ID=15R a).

Note:

• Markings on the product adhere to ASME BPE 2012 DT-10.1 standards.
• Markings include job number, 316L designation, part number, heat number(s), surface finish code, and ASME BPE compliance.
• Due to size constraints, some markings may be omitted on smaller fittings.
• The part number provides details on the configuration and size of the fitting.
• Each fitting is accompanied by a Material Test Report (MTR) certification, enclosed in a resealable bag. MTRs are traceable via the Job Number on each fitting. Fittings are capped to prevent damage and contamination, with color-coded caps for easy identification: blue for PL finish and white for PM finish.

Catalogue Page:

• DPL418 – 625

Certifications:

• 3A Certificate

Dimensional Specifications:

• Dimensional Specs
