T2S92 High Purity BioPharm – 92° Weld Elbows – Dixon

Main Features

T2S92 High Purity BioPharm – 92° Weld Elbows – Dixon

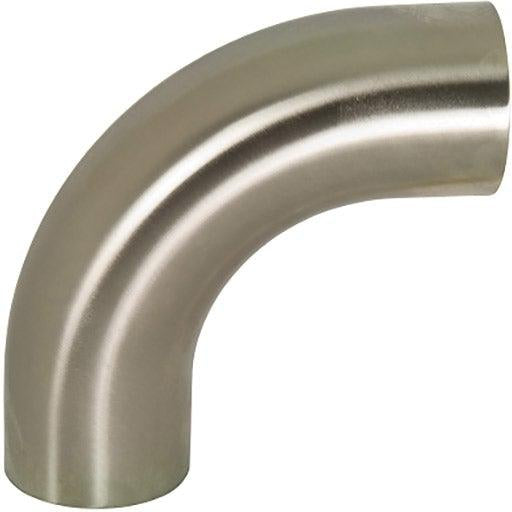

The Dixon T2S92 High Purity BioPharm 92° Weld Elbow is a precision-engineered sanitary fitting designed for high-purity biopharmaceutical and hygienic process systems. With its slightly offset 92° bend, this elbow allows for stress relief and drainability improvements in critical piping layouts — ensuring smooth flow, full cleanability, and long-term system integrity.

Key Benefits

• Enhanced Drainability: The 92° offset design promotes complete system drainage, reducing the risk of product hold-up or contamination.
• High Purity Construction: Fabricated from 316L stainless steel with controlled sulfur content to meet ASME BPE bioprocessing standards.
• Electropolished Finish: Ultra-smooth interior surface (≤15 Ra) minimizes microbial adhesion and supports full CIP/SIP compatibility.
• Welded Connection: Permanent, crevice-free weld joints ensure leak-free, sanitary operation in high-purity environments.
• Full Material Traceability: Each fitting is laser-marked with heat and lot numbers for complete documentation and process validation.

Typical Applications

• Biopharmaceutical production systems
• WFI (Water for Injection) and buffer lines
• Cleanroom and sterile processing systems
• Food and beverage purification lines
• Laboratory and medical device manufacturing

Product Details

• Material: 316L Stainless Steel
• Angle: 92°
• Connection Type: Weld x Weld
• Surface Finish: Electropolished ≤15 Ra
• Size Range: 1/2″ – 6″
• Standards: ASME BPE, 3-A Sanitary, and FDA compliant
• Documentation: MTRs and surface finish certifications available

Designed for precision, purity, and performance — the Dixon T2S92 92° Weld Elbow delivers optimal drainability and reliability for the most demanding high-purity biopharmaceutical applications.
