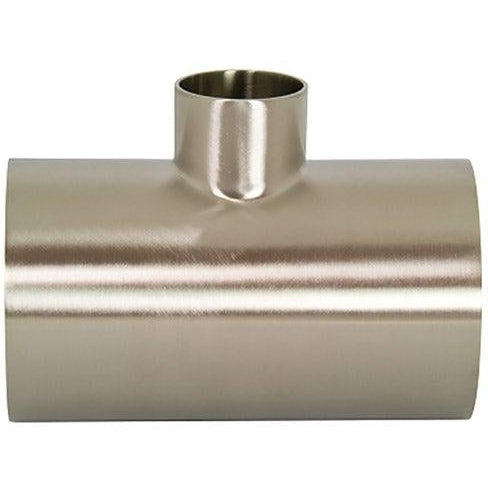

T7RWWW High Purity BioPharm - Weld x Weld x Weld Reducing Tees - Dixon

T7RWWW High Purity BioPharm – Weld x Weld x Weld Reducing Tees – Dixon

SKU : T7RWWW-075050PL

Price range: $56.00 through $890.00

Sanitary Fittings

Key Benefits of T7RWWW High Purity BioPharm Reducing Tees for Professional Brewers

  • Ensures exceptional purity and compliance with industry standards, ideal for maintaining the integrity of brewing processes.
  • Constructed from 316L stainless steel, providing durability and meeting all orbital welding requirements for reliable performance.
  • Comes with Material Test Report (MTR) certifications and protective capping, ensuring traceability and preventing contamination.

Unleash the full potential of your brewery

Get expert advice from an expert brewing solutions like Olivier

514-613-6535

Let's talk

Main Features

Benefits:
  • Ideal for use in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing, and beverage industries due to their high purity standards.
Product Details:
  • Crafted from 316L stainless steel, these fittings adhere to all orbital welding specifications with controlled sulfur content.
  • Conforms to the latest ASME BPE International Standard for Bioprocessing Equipment.
  • Compliant with 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • Available in PL Finish SF1 (OD=32R a- ID=20R a) or PM Finish SF4 (OD=32R a- ID=15R a).
Note:
  • Markings are in accordance with ASME BPE 2012 DT-10.1, including job number, 316L, part number, heat number(s), surface finish code, and ASME BPE.
  • Due to size constraints, some markings may be omitted if space is limited.
  • The part number provides details on the configuration and size of the fitting.
  • Material Test Report (MTR) certifications accompany each fitting in a resealable bag, traceable via the Job Number. Fittings are capped to prevent damage and contamination, with blue caps for PL finish and white caps for PM finish for easy identification.
Catalog Page:
Certifications:
Dimensional Specifications:

Additional information

Weight 100 g
Size

.4" x 2.5", 0.75" x 0.5", 1" x 0.5", 1" x 0.75", 1.5" x 0.5", 1.5" x 0.75", 1.5" x 1", 2" x 0.5", 2" x 0.75", 2" x 1", 2.5" x 1.5", 2.5" x 1", 2.5" x 2", 2.5" x 0.75", 2" x 1.5", 3" x 0.5", 3" x 0.75", 3" x 1.5", 3" x 2.5", 4" x 0.5", 4" x 0.75", 4" x 1.5", 4" x 1", 4" x 2", 4" x 3", 6" x 3", 6" x 4"
Finish

PL Finish SF1, PM Finish – SF4
